Made in the USA by USAutomatic, Inc, the Ranger 500 line is a series of DC low-voltage swing gate operators built for residential, light commercial, farm, and ranch use. Available in single gate and dual gate configurations, the Ranger 500 comes in both solar-charged and AC-powered versions for environmentally friendly swing gate installs. What really sets the Ranger 500 apart is that compared to other all-inclusive gate opener kits, the Ranger 500 is that it's both highly efficient and cost-effective, being among the most cost friendly swing gate opener kits available. Let's take a look at what makes the Ranger 500 so great.
Single or Dual? Solar Powered or AC?
When choosing your swing gate opener kit, it's important to choose the kind of opener that's right for your gate whether that's a single actuator opener for smaller gates or a dual for larger ones. Are you looking for an eco-friendlier install with a solar powered option? These kinds of things are important to know before purchasing your gate opener kit as while they may look similar, they both install and perform quite differently.
The Ranger 500 actuators support up to 13' gates up to 400lbs each, so if you have a single gate that fits these specifications, we recommend getting a single swing gate opener as a dual opener would be overkill. For larger, double gates that are up to 26' in length total (13' per side) and up to 800lbs (400lbs per side) we'd recommend a double gate opener to ensure that your actuators are in sync and have enough power to open your gates.
As for choosing between the AC or the Solar kits, functionally they will operate the same with the same opening speed, gate leaf weights and maximum lengths, etc. Where it really counts is if you're in an area where a solar panel is able to receive consistent sunlight and/or grid power is unavailable. If you don't have a great place to put your solar panel to power your gate operator, we recommend sticking with the AC powered units. In short:
- Single Gates: one panel, one actuator, simpler install
- Dual Gates: two panels that open from a center point, requires Gate 2 cable and hardware
- Both configurations use the same control board and LCR receiver system
- Solar vs. AC: Solar is ideal where grid power is unavailable; AC is preferred for high-cycle or permanent power applications
Ranger 500 Kits at a Glance
USAutomatic Ranger 500 AC Dual Swing Gate Opener Includes:
- (2) Photo Eyes
- Cabinet
- Cover
- Control Board
- Charge Controller
- Radio Receiver With Harness
- Secondary Entrapment Siren
- 8' Charge Control Harness
- Ranger Actuator
- (2) 2-Button Transmitters
- External Reset Button
- (2) Safety Signs

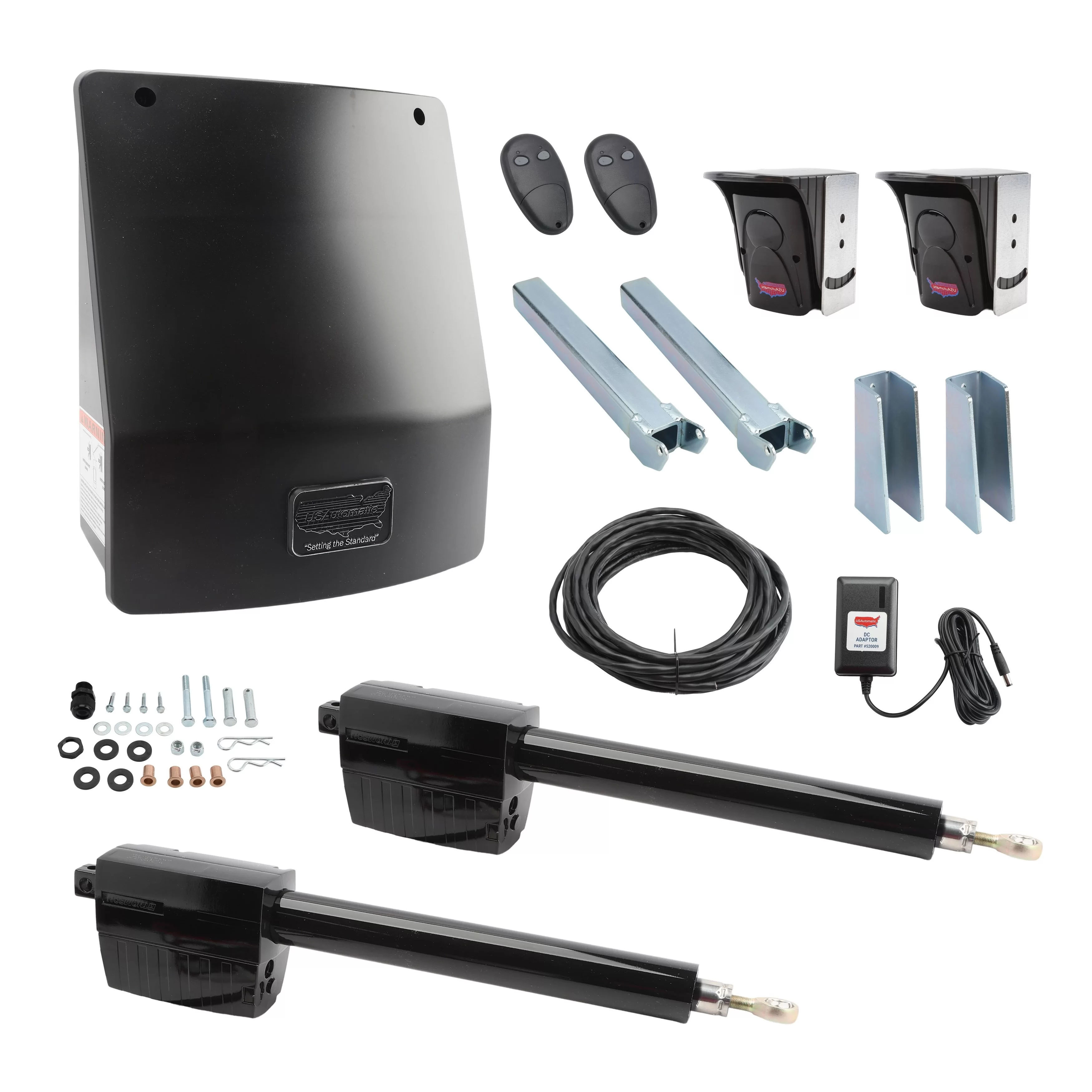

USAutomatic Ranger 500 AC Dual Swing Gate Opener Includes:
- (2) Photo Eyes
- Cabinet
- Cover
- Control Board
- Charge Controller
- Radio Receiver With Harness
- Secondary Entrapment Siren
- 8' Charge Control Harness
- (2) Ranger Actuators
- (2) 2-Button Transmitters
- 35' Dual Gate Actuator Extension Cable
- External Reset Button
- (2) Safety Signs

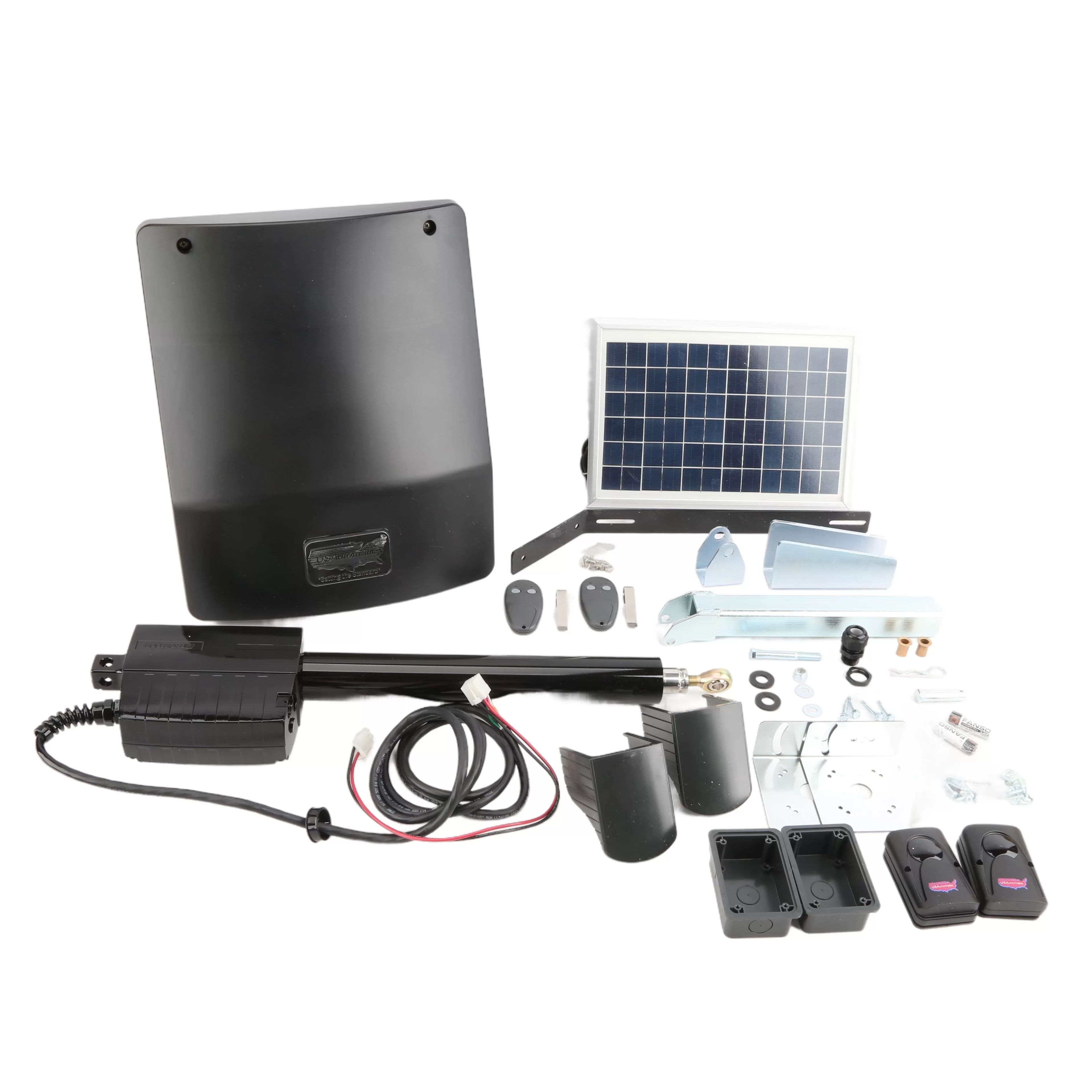

USAutomatic Ranger 500 Solar Swing Gate Opener Includes:
- (2) Photo Eyes
- Cabinet
- Cover
- Control Board
- Charge Controller
- Radio Receiver with Harness
- Secondary Entrapment Siren
- 8' Charge Control Harness
- Ranger Actuator
- (2) 2-Button Transmitters
- Solar Charging Kit
- External Reset Button
- (2) Safety Signs
Solar Charging Kit Includes:
- 10 Watt Solar Panel
- 15 ft Plug N Go Cable
- Mounting Bracket
- Plug

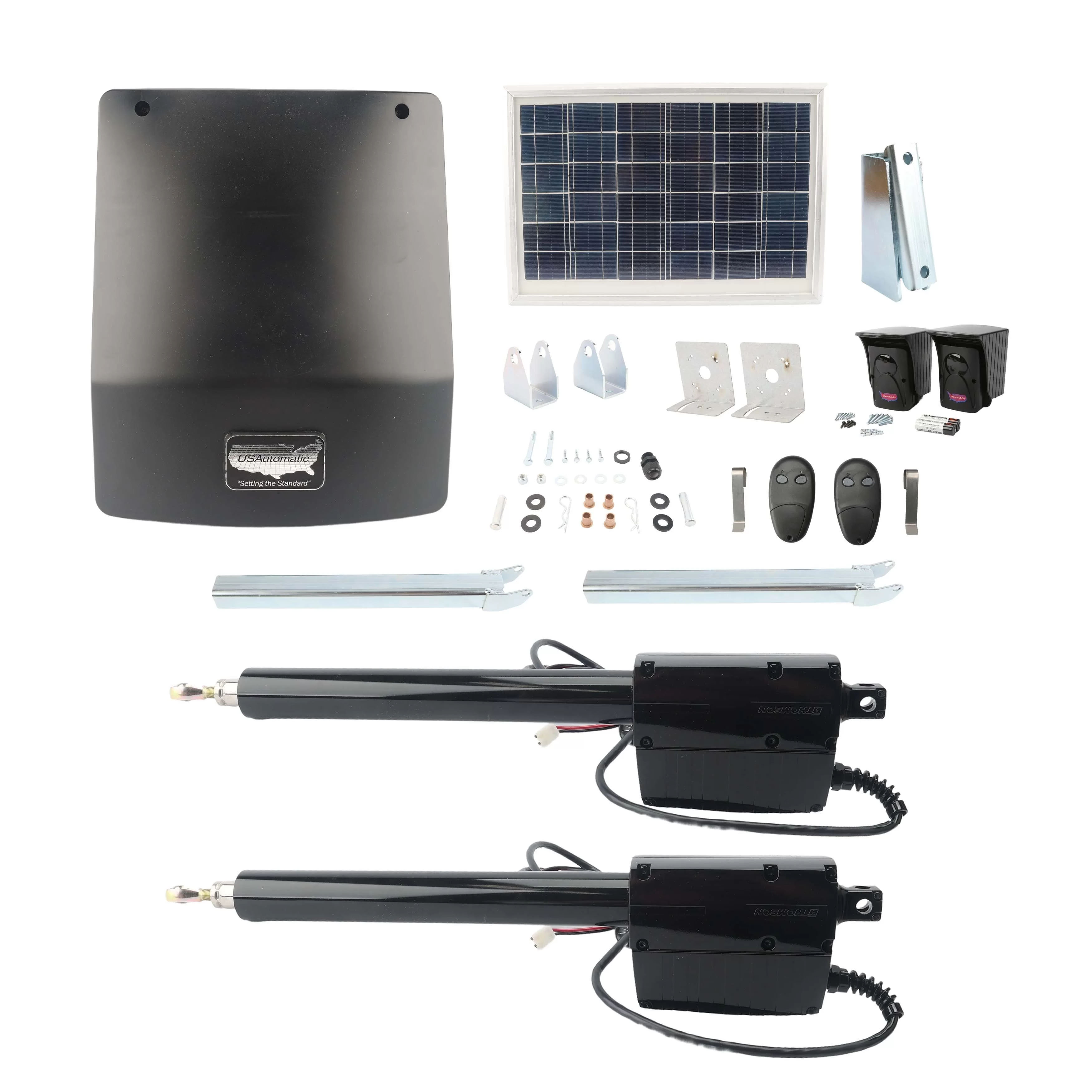

USAutomatic Ranger 500 Solar Dual Swing Gate Opener Includes:
- (2) Photo Eyes
- Cabinet
- Cover
- Control Board
- Charge Controller
- Radio Receiver with Harness
- Secondary Entrapment Siren
- 8' Charge Control Harness
- (2) Ranger Actuators
- (2) 2-Button Transmitters
- 35' Dual Gate Actuator Extension Cable
- Solar Charging Kit
- External Reset Button
- (2) Safety Signs
Solar Charging Kit Includes:
- 10 Watt Solar Panel
- 15 ft Plug N Go Cable
- Mounting Bracket
- Plug
Ranger 500: Key Features and Technology
The Ranger 500 Control Board
Unique to the Ranger 500 series is its distinct blue control board (500028) that's compatible with both single and dual gate systems. It features a battery life LED indicator, open/close push-button input, programmable obstruction sensitivity, & Type D protection with S4 push-button bypass if the J2 accessory plug is removed. Easily used with the included manual and clear visual indicators on the board for quick port allocation, the Ranger 500's control board makes this already simple to understand system even easier.
Actuator and Drive System
- Danaher 16" linear actuator with 400 lbs dynamic thrust and 1,000 lb static hold load rating
- Actuator mounts in two positions, allowing it to be hidden behind a gate cross member
- Bolt-on kit option available for gates where weld mounting is not possible
- Patent-pending limit switch technology for precise open/close travel
Solar and Battery Performance
- Battery-powered with true battery backup, not a single-cycle emergency reserve
- Up to 65 cycles per day on the standard 10W solar panel
- Photo Eye Power Management (PEPM) software conserves battery when solar input is low
- Quick-connect harnesses for all standard components
Safety and UL Compliance
- Meets UL 325-2018 safety standard
- One entrapment protection device required and included (secondary entrapment siren)
- Photo eye included for obstruction detection
Accessories and Add-Ons
Part of what makes USAutomatic gate openers so great is that there's a wide variety of accessories and add-ons that are compatible with each other for your Ranger 500 devices. Want to turn your single swing gate opener into a dual gate opener? Try out the Gate 2 Actuator Installation Kit to upgrade your kit in a flash! Want more access control options? Pick up some wireless transmitters to grant additional users access to your facility. Check out our wide selection of accessories and add-ons below!
Frequently Asked Questions
What gates does the Ranger 500 support?
The Ranger 500 swing gate openers support both single and double gates up to 13 ft and 400 lbs per leaf. For double gates this means up to 26' in length total (13' per side) and up to 800lbs (400lbs per side),
Does the solar version work in low-sun climates?
Yes, the PEPM software helps manage battery in low-sun conditions making sure that it can still function in low-sun climates, however we do highly recommend the AC version in this case.
Can I add a keypad?
Yes, you can add an LCR wireless keypad to your gate opener system as it pairs with the included LCR receiver near-instantly.
Is the control board replaceable?
Yes, the blue control board (500028) is a direct replacement that installs in minutes and just like all other Ranger parts are easily replaceable.
What is the warranty on the Ranger 500?
For all components of all Ranger 500 Swing gate systems there is a 3-Year Warranty.
