Ranger II 500S Dual Swing Gate Operator with Photo Eye, LCR Receiver & 2 Transmitters - USAutomatic 020511

Availability: In stock


Quick Overview

For dual swing gates up to 13 ft and 400 lbs per leaf. Includes receiver and two transmitters.

Ranger 500S Single Swing Gate Operator with LCR Receiver & 2 Transmitters

More Views

  • Components
  • Installation Example
  • Installation

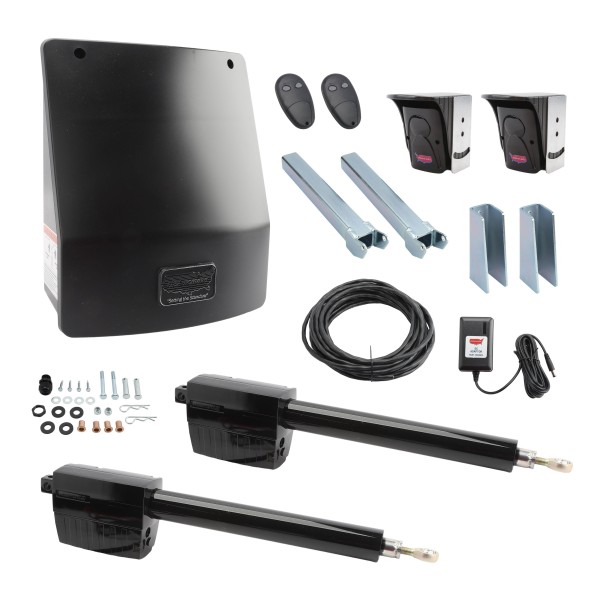

USAutomatic 020510 Ranger 500S dual Operator (with Photo Eye, LCR Receiver and 2 Transmitters)

The Ranger gate operator is defining the next generation of low voltage DC gate openers. It features quick connect harnesses for all standard components, industry first limit switch technology (patent pending), and external reset.

This operator's linear actuator is designed to allow for mounting in two different positions, making it easy to hide behind a cross member in the gate. This improves the aesthetic appeal of your gate!

The Ranger is solar compatible and provides exceptional performance that is unmatched in the industry. It offers up to 65 cycles per day on the standard 6 watt solar panel. Outfit your gate with solar friendly accessories and photo eyes for the safest installation.

This dual swing gate opener includes a receiver, two transmitters, and an A/C charger.


  • Included Photo Eye
  • For dual swing gates up to 13 ft and 400 lbs per leaf
  • Made in the USA
  • Warranty 3 years on all components
  • 2 - LCR 2 button transmitters Included
  • Pre-wired solar friendly LCR dual channel receiver
  • Solar or AC charged with solar friendly smart controller
  • Designed to operate with all types of solar friendly accessories without adding solar panels
  • Independent Gate 1 and Gate 2 sensitivity adjustments
  • Danaher 16" Linear actuator delivering 400 lbs of dynamic thrust and a static hold load rating of 1000 lbs
  • Battery powered providing real battery backup. Not just 1 cycle
  • Built in timer to close
  • Photo Eye Power Management (PEPM) solar friendly software
  • For residential, light commercial, farm and ranch use
  • Hinged control box cover
  • Bolt on kit option is available



  • Included Photo Eye
  • Cabinet
  • Cover
  • Control Board
  • Charge Controller
  • Radio Receiver With Harness
  • Secondary Entrapment Siren
  • Charge Control Harness
  • 2 Ranger Actuators
  • Solar Charging Kit
  • 35' Dual Gate Actuator Extension Cable
  • 2 Two-Button Transmitters
  • External Reset Button
  • 2 Safety Signs

Solar Panel Kit

  • 6 Watt Solar Panel
  • 15 ft. Plug N Go Cable
  • Mounting Bracket
  • Plug

Cutsheet Owner's Manual Troubleshooting Guide Solar Manufacturer Certification
Note: This operator meets the UL325 - 2018 safety standard. One Entrapment Protection Device is required for operation and included.

Additional Information

SKU 020511
Operator: Ranger II
Option: With Receiver
Manufacturer USAutomatic, Inc.
Maximum Gate Size 13 ft
Maximum Gate Weight 400 LBS
Compatibility Dual Gate
Power Supply AC Charged, Solar Charged
Warranty 3 Year
Alternate Sku 20511
