Details

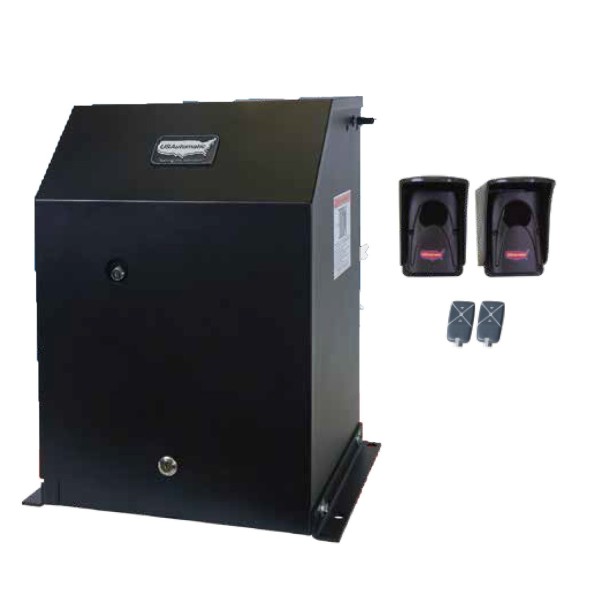

USAutomatic Patriot SLC AC Charged Slide Gate Opener Kit with Receiver - PATRIOT-SLC

This is a battery powered (ac or solar charged) residential and commerical slide gate opener with the capacity for gates up to 1,000lbs or 32 feet in length with a rating of 300 cycles per day. It includes a dual receiver and trsnamitters, photo eyes, and a battery charger. It features soft start and soft stop, battery monitoring and audible notifcation. As well as Wifi App compatibility, a keyed manual relaease and fire department accessability.

Features:

• Pad or post mount installation
• PWM soft start and soft stop
• Battery under load monitoring
• Low battery audible notification
• USAutomatic WiFi App ready
• Adjustable rotary limit assembly
• Synchronized brake prevents gate movement when gate is stationary
• Designed to operate with a variety of common accessories
• Photo eye power management solar friendly software
• 5 year warranty on control board
• 3 year warranty on all other components

Specifications:

• Gate opening speed - 12 inches per second
• Tested and certified to meet the current UL325 gate operator safety standards
• Keyed manual release activation with the cover on or off
• Fire Department cable release without dropping the chain
• Coax cable and external antenna mount
• Extra large battery compartment
• Quick connect wiring harnesses
• Qualifies for a 30% federal solar tax credit (Solar models only)

Kit Includes:

• 14 gauge powder coated steel chassis and cover with keyed cam lock
• Heavy duty 12 VDC direct drive gearmotor with synchronized brake
• Prewired solar friendly LCR dual channel receiver
• (2) 2-button premium transmitters
• 30 feet of #41 chain
• Reliable through beam photo eyes with battery or hardwired option
• Battery charger for AC or solar
